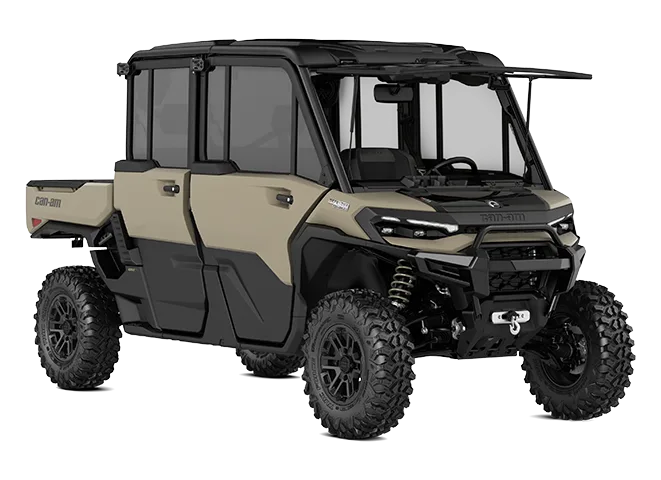

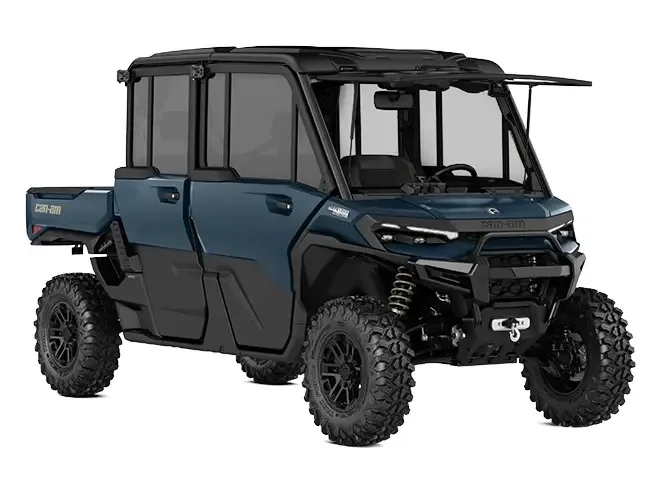

Defender Max Limited HD11
A capable side by side built for workdays and weekends off road. The 999 cc, 95 hp Rotax ACE powertrain delivers steady traction and confident climbing. The CVT pDrive/QRS-X provides smooth power delivery. Top speed up to 106 km/h is handy for quicker transfers. The 45 L fuel tank reduces stops on longer routes. Six seats suit both work crews and family trips. Weight 1070 kg and a planted stance improve stability on dirt.
Everything about the machine
Specifications
Engine and drivetrain
- Engine
- Rotax ACE 999
- Displacement
- 999 cc
- Power
- 95 hp (71 kW)
- Fuel tank
- 45 L (11.9 gal)
- Drive
- Selectable 2WD / 4WD with Visco-4Lok front differential
- Transmission
- CVT pDrive / QRS-X
Suspension and running gear
- Front suspension
- Arched double A-arm with sway bar
- Front travel
- 305 mm (12.0 in)
- Rear suspension
- Arched double A-arm
- Rear travel
- 305 mm (12.0 in)
- Front shocks
- Twin-tube gas shocks
- Rear shocks
- Twin-tube gas shocks
Brakes and wheels
- Front brakes
- Dual 262 mm hydraulic disc brakes
- Rear brakes
- Dual 236 mm hydraulic disc brakes
- Front tires
- XPS Trac Force 30 x 9 x 15
- Rear tires
- XPS Trac Force 30 x 10 x 15
- Wheels
- 15 "
Dimensions and weight
- Length
- 41.3 cm (16.3 in)
- Width
- 16.5 cm (6.5 in)
- Height
- 20.7 cm (8.1 in)
- Dry weight
- 1199.8 kg (2645 lbs)
- Seats
- 6 seats
- Top speed
- 106 km/h (66 mph)
- Wheelbase
- 29.9 cm (11.8 in)
- Ground clearance
- 3.6 cm (1.4 in)
- Rack capacity
- 317.5 kg (700 lbs)
- Towing capacity
- 1134 kg (2500 lbs)
- Storage capacity
- 14 L (3.7 gal)
Key features
- Лебёдка Can-Am HD 4500
- Передний бампер
- Полная защита днища
- Шестиместная закрытая кабина
